When selecting an inline fuse and relay kit for auxiliary pumps, durability and reliable protection are key. The Electric Fuel Pump Relay Kit Universal Fit 12V 80 AMP stands out for its high current capacity and universal compatibility, making it ideal for heavy-duty applications. The Nilight Electric Fuel Pump Relay Kit Wiring Harness offers excellent waterproofing and wiring quality at a competitive price, perfect for DIY setups. However, buyers face tradeoffs between maximum current capacity, waterproofing features, and ease of installation. Continue reading for a detailed breakdown of the best options in 2026 and what makes each unique.
Complete the kit
Key Takeaways
- High current capacity (80A) models are best suited for demanding auxiliary pump setups.
- Waterproof features are crucial for durability in outdoor or wet environments.
- Wiring length and quality significantly impact ease of installation and system reliability.
- Budget options often sacrifice some durability or advanced features but offer good value.
- Universal fit kits generally provide more versatility but may require more setup effort.
More Details on Our Top Picks
Electric Fuel Pump Relay Kit for 12V System 40 AMP Waterproof Heavy Duty Long Wires
This relay kit stands out for combining durability with comprehensive wiring, making it ideal for those who prioritize reliable performance in all weather conditions. Compared with the Electric Fuel Pump Relay Kit, 40 Amp Waterproof Heavy Duty Relay Wiring Harness, it offers similar waterproofing but includes a detailed wiring diagram that simplifies installation. While it’s highly dependable, some users may find it requires a degree of electrical familiarity for setup, especially if unfamiliar with automotive wiring. Its waterproof components and heavy-duty wiring make it suitable for rugged environments, but that robustness might be overkill for smaller, less demanding fuel pumps.
Pros:- Durable waterproof components suitable for all weather conditions
- Heavy-duty wiring enhances reliability and performance
- Includes detailed wiring diagram for easier installation
Cons:- May require professional installation for those unfamiliar with automotive wiring
- Design may be overbuilt for small or low-amp fuel pumps
Best for: Car enthusiasts or professionals needing a durable, weatherproof relay for automotive fuel pumps with demanding environments
Not ideal for: DIYers with limited electrical experience or those installing on low-amperage systems, as wiring might be complex
- Voltage:12V
- Amperage:40 amps
- Weatherproof:Yes
- Wiring:Heavy-duty, long wires
- Relay:40 Amp waterproof relay
- Fuse box:Inline waterproof fuse box
Our verdict“This pick is best for those seeking a rugged, weatherproof relay with comprehensive wiring for demanding automotive applications.”
Electric Fuel Pump Relay Kit, 40 Amp Waterproof Heavy Duty Relay Wiring Harness with Nylon Wire Loom & Long Wires
This kit offers a strong balance of durability and affordability, especially with its long, color-coded wires and waterproof build. Unlike the Electric Fuel Pump Relay Kit 40A Waterproof Heavy Duty Universal Fit, which emphasizes high power capacity, this option focuses on ease of installation and comprehensive components, making it ideal for DIYers. Its nylon wire loom provides added protection, but it requires basic electrical knowledge for correct wiring. While it’s excellent for standard 12V systems, it’s less suitable for higher amperage setups.
Pros:- Heavy-duty waterproof construction ensures durability
- Long, color-coded wires simplify wiring and troubleshooting
- Includes all essential components for a complete setup
Cons:- Requires basic automotive electrical knowledge for installation
- Limited to 12V systems, not suitable for higher voltage applications
Best for: DIYers or hobbyists looking for a reliable, waterproof relay kit with straightforward installation
Not ideal for: Professionals needing high-current capacity or those working on high-performance systems, as it’s limited to 40 amps
- Amperage:40 amps
- Wiring Lengths:10ft red, 6ft orange, 2ft brown, 4ft black
- Waterproof:Yes
- Relay:40A waterproof relay
- Fuse:30A waterproof fuse holder
- Material:Tinned copper wires
Our verdict“This kit makes the most sense for DIYers seeking a reliable, waterproof relay with easy-to-follow wiring in standard 12V setups.”
Electric Fuel Pump Relay Kit Universal Fit 12V 80 AMP Waterproof Wiring Harness
Designed for high-demand applications, this relay kit supports up to 80 amps, making it suitable for larger fuel pumps or multiple pumps. Compared with the Electric Fuel Pump Relay Kit 40A Waterproof Heavy Duty Universal Fit, it offers double the amperage capacity, which benefits heavy-duty or aftermarket setups. Its waterproof housing and included wiring components facilitate straightforward installation, but it demands a basic understanding of electrical systems due to its high power rating. This kit is less ideal for simple applications or small pumps, where overkill could add unnecessary complexity.
Pros:- Universal fit for most 12V automotive systems
- High power capacity of 80 amps for demanding setups
- Waterproof design enhances durability in harsh environments
- Easy installation with comprehensive wiring diagram
Cons:- Requires basic electrical knowledge for installation
- Overkill for low-amperage or smaller fuel pumps
Best for: Professionals or serious enthusiasts installing high-current fuel pumps or multiple pumps
Not ideal for: Casual vehicle owners or DIYers with limited electrical experience, due to the higher amperage and complexity
- Voltage:12V
- Amp Rating:80 AMP
- Waterproof:Yes
- Includes:Relay base with wire harness, relay, waterproof fuse holder, fuse, mounting screws, wire connectors, ring terminals, cable ties, wiring diagram
Our verdict“This relay kit is ideal for users who need a robust, high-capacity solution for demanding automotive fuel systems.”
Electric Fuel Pump Relay Kit 40A Waterproof Heavy Duty Universal Fit 12V
This relay kit provides a straightforward, durable solution for 12V systems with its heavy-duty waterproof construction. Compared to the Electric Fuel Pump Relay Kit for 12V System 40 AMP Waterproof Heavy Duty Long Wires, it emphasizes simplicity and includes all necessary components for quick setup. Its long, color-coded wires help streamline wiring, but it’s designed specifically for 12V systems, making it unsuitable for higher voltage or specialized applications. It’s a solid choice for standard fuel pump setups but may be excessive for smaller, low-current pumps.
Pros:- Heavy-duty waterproof construction for durability
- Includes all necessary components for quick installation
- Long, color-coded wires facilitate wiring
Cons:- Limited to 12V systems, not adaptable to other voltages
- May be over-equipped for low-current fuel pumps
Best for: Vehicle owners needing a reliable, universal relay for standard 12V fuel pumps with straightforward installation
Not ideal for: High-performance or high-voltage systems requiring more advanced features or higher amperage ratings
- Amperage:40A
- Voltage:12V
- Wiring Lengths:10 ft (red), 6 ft (orange), 2 ft (brown), 4 ft (black)
- Fuse:30A
Our verdict“This relay kit suits those who want a dependable, all-in-one solution for standard 12V fuel pumps with simple installation requirements.”
12V Electric Fuel Pump Waterproof Relay Kit with Heavy Duty Wiring Harness and Switches
This kit excels for applications requiring direct high-current connection to the battery, such as high-pressure or large-capacity fuel pumps. Compared with the Electric Fuel Pump Relay Kit, 40 Amp Waterproof Heavy Duty Relay Wiring Harness, it features a 60A relay and switches for manual control, offering more flexibility for custom setups. Its weatherproof components and comprehensive accessories help ensure safe, reliable operation, but installation can be complex for those unfamiliar with electrical wiring. It’s overkill for small or low-amperage pumps but ideal for heavy-duty needs.
Pros:- Durable, weatherproof components suitable for harsh conditions
- Includes all wiring and accessories for a complete installation
- Supports high current loads up to 60A for demanding pumps
- Features switches for manual operation
Cons:- Installation requires some electrical expertise
- Heavy-duty components may be more than needed for simple applications
Best for: Experienced vehicle owners or professionals wiring high-current fuel pumps needing manual control and robust protection
Not ideal for: Casual users or those with limited electrical skills, due to the complexity of installation and higher amperage
- Current Rating:60 A
- Coil Voltage:12 V DC
- Mounting Type:Screw Mount
- Weatherproof:Yes
Our verdict“This kit is best suited for advanced users installing high-current fuel pumps with manual operation requirements.”
Nilight Electric Fuel Pump Relay Kit Wiring Harness 10 Gauge Cables with 40 AMP Relay and Waterproof Fuse
This Nilight kit stands out for its heavy-duty construction and waterproof fuse holder, making it ideal for demanding conditions like off-road vehicles, marine applications, or trailers. Compared with the Electric Fuel Pump Relay Kit 40 AMP Waterproof Heavy Duty Long Wires, it offers similar durability but includes a more comprehensive wiring diagram and color-coded wires, simplifying installation. Its 40A relay is suitable for most fuel pumps, but it limits you to devices up to that current, which could be a constraint in high-demand setups. The waterproof fuse holder provides extra safety in wet conditions, but the kit requires some electrical knowledge to install properly. Overall, this option is well-suited for those needing reliable, durable performance in exposed environments.
Pros:- Heavy-duty waterproof construction for harsh environments
- Includes waterproof fuse holder for extra safety
- Color-coded wiring and diagram simplify installation
Cons:- Requires basic electrical skills for proper installation
- Limited to 40A devices, not suitable for higher power pumps
Best for: Off-road enthusiasts or marine users needing robust, waterproof protection for fuel pumps.
Not ideal for: Beginners or those installing in dry, simple setups where waterproofing isn’t critical.
- Connector Type:Plug-In
- Contact Type:Normally Open
- Current Rating:40 A
- Mounting Type:Surface Mount
- Operation Mode:Automatic
- Wattage:450 watts
Our verdict“This kit makes the most sense for users seeking durable, waterproof performance in challenging conditions.”
Electric Fuel Pump Relay Kit 12V Waterproof 60 Amp
This relay kit shines when high current capacity is needed, offering a 60A relay suitable for larger fuel pumps or multiple devices. Compared to the Nilight 40A relay kit, it allows for greater power handling, making it better suited for demanding setups but also adding extra bulk and cost. Its waterproof design ensures reliable operation in wet conditions, and the included wiring harness is sufficiently long for flexible installation. However, its 60A capacity means it might be overkill for small pumps, and it requires a bit more electrical know-how to wire correctly. This pick is ideal for users who need a robust, high-capacity relay for heavy-duty applications.
Pros:- High 60A capacity for demanding fuel pump needs
- Waterproof construction for reliability in wet environments
- Complete kit with wiring and hardware
Cons:- Bulkier and possibly more expensive than lower-rated options
- Requires electrical knowledge for correct installation
Best for: Experienced installers or heavy-duty vehicle owners with high-current fuel pumps.
Not ideal for: Casual users or small vehicles with standard pumps, as it might be more than needed and harder to manage.
- Voltage:12V
- Current Rating:60 Amp
- Wire Lengths:10-ft red, 6-ft blue, 18-gauge yellow/gray
- Fuse:30A inline fuse
- Waterproof:Yes
- Includes:Relay, wiring harness, fuse holder, fuse, hardware
Our verdict“This relay kit is best suited for users requiring high current capacity and waterproof reliability in tough conditions.”
Electric Fuel Pump Relay Kit 40 AMP Waterproof Heavy Duty Long Wires
This relay kit offers a solid balance of durability and extended wiring, making it highly suitable for custom automotive setups where long cable runs are needed. Compared with the Nilight 40A kit, it emphasizes long, corrosion-resistant wires, which can simplify installation in complex engine bays or larger vehicles. Its waterproof build adds reliability, but it’s designed specifically for automotive use, limiting its application in marine or outdoor environments. The 40A capacity aligns with most standard fuel pumps, but the wiring gauge and contact material may be less suited for extremely high-demand scenarios. Overall, this kit is a practical choice for those prioritizing flexible, long-distance wiring in vehicle installations.
Pros:- Heavy-duty waterproof construction
- Includes long, corrosion-resistant wiring
- Reliable 40A capacity for standard fuel pumps
Cons:- Limited to automotive applications
- Requires electrical skills for proper wiring
Best for: Auto enthusiasts or mechanics installing fuel pumps in larger or custom vehicle setups.
Not ideal for: Marine or outdoor applications where waterproofing needs are more demanding or environmental exposure is high.
- Connector Type:Wired
- Contact Type:Normally Open
- Current Rating:40 A
- Mounting Type:Surface Mount
- Operation Mode:Automatic
- Contact Material:Tin-copper
Our verdict“This kit makes the most sense for automotive users needing long wiring runs and reliable waterproof performance.”

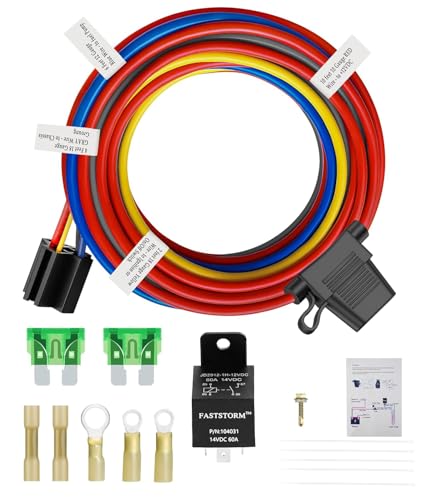

Electric Fuel Pump Relay Kit 12V Waterproof Bypass Harness, 40 AMP
This relay kit emphasizes straightforward, plug-and-play operation with its waterproof design and included harness, making it accessible for less experienced users. Compared with the Nilight or Heavy-Duty Long Wires kits, it simplifies wiring by providing a complete bypass harness, reducing installation time and complexity. Its 40A capacity suits most standard fuel pumps, but it’s limited to 12V systems and may lack the durability needed for prolonged harsh conditions. The kit’s simplicity makes it attractive for quick upgrades or replacements, but power handling is not beyond typical automotive demands. This makes it an excellent choice for DIYers prioritizing ease of installation.
Pros:- Easy plug-and-play installation
- Waterproof construction for reliable outdoor use
- Includes fuse, wiring, and connectors
Cons:- Limited to 12V systems
- Lower flexibility for complex wiring or high-power applications
Best for: DIY enthusiasts or vehicle owners looking for quick, reliable fuel pump relay upgrades.
Not ideal for: Heavy-duty applications or environments requiring more advanced waterproofing and wiring customization.
- Application:Universal 12V
- Amp Rating:40A
- Fuse:30A
- Wire Lengths:10 ft (red), 6 ft (orange), 2 ft (brown), 4 ft (black)
- Waterproof:Yes
- Warranty:2 years
Our verdict“This kit is ideal for users seeking a simple, reliable relay for standard 12V fuel pump setups with minimal fuss.”
How We Picked
I evaluated these kits based on several factors that matter most to buyers: maximum current handling capabilities, waterproofing and durability, wiring quality and length, ease of installation, and overall value. Kits with higher amperage ratings and superior waterproof features ranked higher because they provide more reliable performance under tough conditions. I also considered how straightforward each kit is to install, especially for DIY enthusiasts. Products were ranked to balance performance with practicality, ensuring each option caters to different needs—from heavy-duty applications to budget-friendly setups.Factors to Consider When Choosing Inline Fuse And Relay Kit For Auxiliary Pumps
Choosing the right inline fuse and relay kit for your auxiliary pump requires understanding several key aspects that affect performance, longevity, and ease of use. Not all kits are created equal, and selecting one that matches your specific setup can prevent failures and improve overall system reliability. Here are the main factors to consider before making a purchase.Current Rating and Capacity
The amperage rating determines how much current the relay and fuse can safely handle. For auxiliary pumps with higher power demands, selecting a kit rated at 60A or above is advisable. Overloading a relay can cause failure or damage to your wiring, so always match or slightly exceed your pump’s maximum current draw. Conversely, for smaller pumps, a lower-rated kit might suffice, saving cost and complexity without sacrificing performance.
Waterproofing and Durability
Since many auxiliary pumps are used in outdoor or wet environments, waterproof design is essential. Look for kits with waterproof relays, fuse holders, and wiring that resist corrosion and short circuits. A waterproof fuse and relay kit can extend the lifespan of your system by preventing moisture-related failures, especially in vehicles or off-road setups exposed to the elements.
Wiring Length and Quality
Longer wiring harnesses provide greater flexibility for routing your system, but the quality of the wiring matters equally. Thicker gauge wires, such as 10 or 12 AWG, reduce voltage drop and handle higher currents more safely. High-quality wiring also resists wear and tear, making maintenance easier and reducing the risk of electrical issues over time.
Ease of Installation
DIY installers should prioritize kits that come with clear instructions, comprehensive wiring diagrams, and straightforward mounting options. Some kits feature plug-and-play connectors, which significantly reduce setup time. Avoid overly complex setups if you lack experience, as improper wiring can lead to system failures or safety hazards.
Price and Overall Value
While higher-priced kits often offer better durability, higher current ratings, and advanced waterproofing, they are not always necessary for every setup. Balance your budget against your system’s demands. A well-chosen mid-range kit can provide reliable performance without overspending, especially if your auxiliary pump has moderate power needs.
Frequently Asked Questions
Can I use a lower amperage relay for a high-power auxiliary pump?
Using a relay rated below your pump’s maximum current can lead to overheating, relay failure, or electrical damage. Always select a relay with an amperage rating that meets or exceeds your pump’s draw. This ensures safe operation and longevity of your system, preventing costly repairs or replacements down the line.
How important is waterproofing in an inline fuse and relay kit?
Waterproofing is critical if your system is exposed to moisture, rain, or off-road conditions. Proper waterproof relays and fuse holders prevent corrosion, short circuits, and electrical failures. Investing in a waterproof kit can significantly extend the lifespan of your setup and reduce maintenance needs in harsh environments.
What wiring gauge should I choose for my auxiliary pump relay kit?
The ideal gauge depends on your pump’s current draw. For most auxiliary pumps, 10 to 12 AWG wiring strikes a good balance between flexibility and capacity. Thicker wiring minimizes voltage drop and heat buildup, which are vital for consistent performance, especially over longer distances.
Is a universal fit relay kit better than a dedicated one?
Universal fit kits offer versatility and can adapt to various setups, making them suitable for multiple applications. However, they may require more customization during installation. Dedicated kits designed specifically for certain systems might offer easier installation but less flexibility. Choose based on your technical comfort and specific needs.
When should I consider spending more on a premium relay kit?
If your auxiliary pump demands high current, operates in harsh conditions, or you prioritize long-term durability, investing in a premium kit makes sense. Higher-end kits often feature superior waterproofing, higher amperage ratings, and more durable wiring. For critical or heavy-duty applications, this extra investment can prevent failures and save money over time.
Conclusion
For most users, the Electric Fuel Pump Relay Kit Universal Fit 12V 80 AMP offers the best balance of high capacity, durability, and versatility, making it the top overall pick. Budget-conscious buyers will find the Nilight Electric Fuel Pump Relay Kit Wiring Harness provides excellent waterproofing and wiring quality at a lower cost. Those seeking a premium setup with maximum reliability should consider higher-rated, waterproof options designed for demanding environments. Beginners or casual users should prioritize kits with plug-and-play features and clear instructions, while professionals handling heavy-duty or off-road systems should opt for higher amperage and rugged waterproof models. This lineup ensures there’s a suitable choice for every specific need and budget while maintaining performance and safety standards.
