Installing a gearbox sight glass is a simple upgrade that helps you prevent overfilling and costly failures. It provides instant visual confirmation of fluid levels, so you can avoid the risks of excess lubricant that cause leaks, seal damage, and gear wear. Choosing the right material and ensuring proper installation keeps it effective and durable. Keep an eye on common issues and maintenance tips to maximize its lifespan—if you want to learn more, just keep reading.
Key Takeaways
- Upgrading to high-quality sight glasses ensures accurate fluid level monitoring, preventing overfill errors and related gearbox failures.
- Properly installed sight glasses allow quick visual checks, reducing maintenance time and avoiding overfilling during manual inspections.
- Durable sight glasses with chemical and thermal resistance minimize leaks, seal damage, and contamination risks associated with overfilling.
- Regular inspection and maintenance of sight glasses help detect early issues, ensuring correct fluid levels and preventing overfill disasters.
- Choosing the right sight glass material and positioning enhances visibility, safety, and reliability of fluid level management.

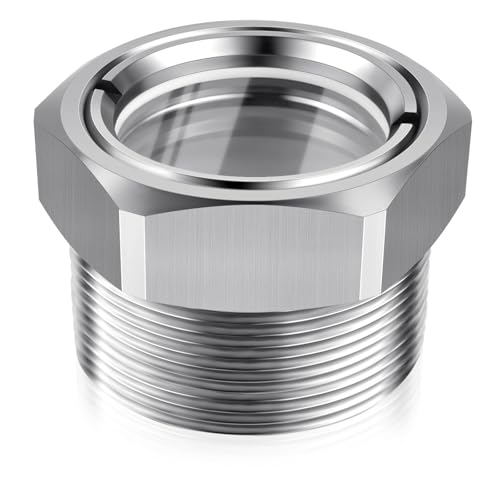

3/4'' NPT Male Hex Head Stainless Steel Oil Sight Glass Liquid Level Gauge Oil Indicator Window For Air Compressor Gearbox Fittings Hydraulic Tank Sight Glass (3/4'' NPT Male)
【Temperature & Pressure】Stainless steel 3/4 NPT oil sight glass gauge can work under pressure 800 PSI (55 bar)…
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
Why Overfilling Gearboxes Causes Costly Failures
Have you ever wondered why overfilling a gearbox can lead to expensive repairs? When you add too much lubricant, it disrupts lubrication efficiency, causing excess pressure and heat buildup. This strain accelerates wear on gears and bearings, increasing the risk of premature failure. Overfilled gearboxes also hinder proper gearbox diagnostics, making it harder to spot issues early. The excess fluid can leak or blow out seals, leading to contamination and further damage. Plus, the added stress can cause misalignment and vibrations, reducing overall reliability. By avoiding overfilling, you help maintain ideal lubrication efficiency and ensure accurate diagnostics. Keeping fluid levels just right minimizes stress on components, saving you money on costly repairs and downtime. Proper maintenance starts with understanding how overfilling impacts your gearbox’s health.
Lenz T-LLG-5 Industrial Fluid Level Gauge – 6.1-Inch Tank Sight Glass with Built-in Thermometer – Polyamide-Coated Hydraulic Oil Level Monitor, 5-Inch Mount, Temperature Range to 212°F, 1/2-13 Thread
PRECISION DUAL MEASUREMENT: Monitor fluid levels and temperature simultaneously with this professional-grade 6.1-inch sight glass gauge. Features built-in…
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
How Sight Glasses Help You Check Fluid Levels Instantly
Sight glasses provide an immediate and straightforward way to check your gearbox’s fluid levels without the need for complex tools or procedures. With a quick glance, you can confirm whether the fluid is at the correct level, ensuring proper operation. This simple method helps prevent overfill disasters and supports optimal gearbox performance. It also enhances inspection ease and reduces downtime. To better understand, consider this comparison:
| Feature | Traditional Dipstick | Sight Glass | Benefits |
|---|---|---|---|
| Inspection Ease | Moderate | Very Easy | Fast, no tools needed |
| Accuracy | Variable | Consistent | Clear fluid level visibility |
| Risk of Overfill | Higher | Lower | Prevents overfill disasters |
| Maintenance Time | Longer | Shorter | Quicker checks |
With sight glasses, you get real-time clarity, minimizing guesswork and keeping your gearbox running smoothly.
Air Compressor Sight Glass 1/2inch NPT Male Thread Aluminum Alloy Hex Oil Sight Glass Window Oil Liquid Level Gauge For Air Compressor Gearbox Pump Tank(1/2‘’ NPT-4pcs)
【Temperature & Pressure】 Air compressor sight glass can work under Max pressure 217 PSI (15 bar) and max…
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
What Features Matter Most When Choosing a Gearbox Sight Glass
When choosing a gearbox sight glass, you need to take into account the material’s durability and compatibility with your system. Clear visibility is essential for accurate readings, but safety features also matter to prevent accidents. Focusing on these key aspects helps you select the best sight glass for reliable, long-lasting performance. Additionally, considering burnout prevention strategies can help maintain system integrity and prolong equipment lifespan. Implementing monitoring techniques can further enhance system safety by providing early detection of potential issues. Ensuring proper installation practices can also play a vital role in maintaining the effectiveness and safety of the sight glass over time. Regular maintenance routines help ensure the sight glass remains in optimal condition and continues to serve its purpose effectively.
Material Durability and Compatibility
Choosing a gearbox sight glass requires careful consideration of material durability and compatibility to guarantee long-lasting performance. You need a material that withstands harsh conditions and resists chemical exposure. Material selection impacts how well the sight glass endures wear and tear, preventing premature failure. Chemical resistance is vital to make certain the sight glass isn’t compromised by the fluids it monitors. Use the table below to compare common materials:
| Material | Durability | Chemical Resistance |
|---|---|---|
| Borosilicate Glass | High; resistant to thermal shock | Excellent |
| Polycarbonate | Moderate; impact-resistant | Good but limited with acids |
| Acrylic | Moderate; clear and lightweight | Poor with solvents |
| Quartz | Very high; extreme conditions | Excellent |
| Stainless Steel | Very durable | Excellent |
Choose based on your application’s specific demands. Additionally, considering the chemical resistance of the material can prevent costly replacements and ensure safety in demanding environments. Moreover, selecting a material that withstands thermal stress can further extend the lifespan of the sight glass in temperature-variable settings. For example, using materials with thermal shock resistance can be crucial in environments with fluctuating temperatures.
Clear Visibility and Safety
To guarantee safe and effective monitoring, clear visibility through your gearbox sight glass is essential. Proper sight glass positioning ensures you can easily see lubricant levels without obstruction, reducing the risk of overfill or low fluid levels. When choosing a sight glass, consider lubricant viscosity, as thicker oils may require larger or specially designed glasses for clear observation. A well-placed sight glass minimizes blind spots and glare, helping you quickly assess the gearbox’s condition. Clear visibility allows for timely interventions, preventing damage or failure. Additionally, selecting a sight glass made from durable materials ensures long-term performance under challenging conditions. Using high-quality materials also helps resist corrosion and wear, extending the lifespan of your sight glass. Ensuring proper installation techniques can further enhance visibility and safety. Proper sight glass design and material selection are crucial for maintaining clarity over time, especially in harsh environments. By selecting a sight glass that offers high transparency and is positioned for optimal viewing, you enhance both safety and efficiency in your equipment’s operation. Ultimately, clarity and strategic placement are vital for reliable, safe monitoring. Incorporating regular maintenance of the sight glass can prevent buildup of dirt or debris that could impair visibility.
GROZ 55-Gallon Drum Level Indicator for Stationary Oil & Fuel Tanks, 3/4" Thread Fits Standard Bung, Chemical-Resistant Gauge with 0-55 Gal Display (48003)
NEVER RUN DRY – Know at a glance when your 55-gallon drum needs refilling; clear 0-55 gallon dial…
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
How to Install a Sight Glass on Your Gearbox Without Hassle
Installing a sight glass on your gearbox can seem intimidating, but with the right approach, it’s a straightforward process. First, ensure the gearbox is cool and drained to prevent spills. Next, locate a suitable port for installation—usually on the side or top—where you can easily see the oil level. Use the correct size and type of sight glass, and carefully drill or remove the existing plug. Seal it properly to prevent leaks, and double-check the fit. This simple upgrade helps you monitor lubrication levels and temperature more effectively, supporting proper lubrication scheduling and avoiding overheating. Additionally, understanding fluid level monitoring can help prevent overfill disasters and extend your gearbox’s lifespan. Properly installing a sight glass also allows for real-time visual assessment, which can improve maintenance efficiency and reduce downtime. Incorporating performance upgrades such as a high-quality flywheel or engine modifications can further optimize your vehicle’s operation and longevity.
Common Sight Glass Problems and How to Fix Them
While installing a sight glass can improve gearbox monitoring, it’s common to encounter problems that hinder its effectiveness. One frequent issue is sight glass leaks, which often result from improper sealing or damage during installation. These leaks can cause oil spills and inaccurate readings. Incorrect installation is another common problem; if the sight glass isn’t aligned or secured properly, it can lead to leaks or clouded visibility. To fix these issues, check the gasket or seal for damage and replace if necessary. Ensure the sight glass is installed straight and tightened evenly, avoiding over-tightening that can crack the glass. Regularly inspecting the installation and replacing worn seals helps maintain a clear view and prevents leaks, keeping your gearbox properly monitored. Additionally, understanding proper installation techniques can significantly reduce the likelihood of future problems. Being aware of common causes of sight glass failure enables quicker troubleshooting and ensures the longevity of your gearboxes.
Tips for Maintaining Clear, Effective Sight Glasses
To keep your sight glasses clear and effective, you should practice regular cleaning to prevent buildup. Ensuring proper fluid levels helps maintain visibility and prevents damage to the glass. Additionally, choosing high-quality sight glasses can extend their lifespan and improve overall performance. Regular inspections can also identify potential cabling failures early, reducing downtime and maintenance costs. Incorporating regional safety standards into your maintenance routine can help ensure compliance and avoid costly penalties. Monitoring fluid contamination levels is also important to prevent issues that could compromise sight glass clarity and function. Implementing proper installation techniques can further enhance the durability and reliability of your sight glasses. Moreover, adhering to manufacturer guidelines can ensure optimal performance and longevity of your sight glasses.
Regular Cleaning Practices
Are you guaranteeing your gearbox sight glasses stay clean and clear? Regular cleaning is essential for reliable visibility. Follow your lubrication schedules closely to prevent buildup of dirt, sludge, or debris that can obscure the view. Use a soft cloth or brush to gently wipe the glass, avoiding harsh abrasives that may cause scratches. Incorporate contamination control measures by inspecting seals and venting systems regularly, preventing dirt from entering the housing. If the sight glass becomes cloudy or dirty, clean it promptly to maintain accurate oil level readings. Consistent cleaning prevents oil discoloration and ensures the sight glass functions effectively. By staying proactive with cleaning practices, you’ll extend the lifespan of your sight glasses and improve your gearbox’s overall performance.
Proper Fluid Levels
Maintaining proper fluid levels is crucial for keeping your gearbox sight glasses clear and effective. When fluid levels are correct, the lubricant properties—such as viscosity and cleanliness—help prevent cloudiness and buildup around the glass. Overfilled gearboxes can cause excessive pressure, risking leaks and seal damage, so always check levels regularly. Conversely, low fluid levels can lead to reduced lubrication, increased wear, and cloudy sight glasses due to contamination. Ensure the lubricant you use is compatible with your seal materials to prevent deterioration or leaks. Accurate fluid levels promote consistent lubrication, minimize the chance of overfill disasters, and keep your sight glass visible and reliable. Regularly monitoring and adjusting fluid levels is a simple but critical step in maintaining ideal gearbox performance.
Use Quality Sight Glasses
Using high-quality sight glasses is essential for getting accurate, reliable readings of your gearbox’s condition. When you invest in durable, well-made sight glasses, visual inspection becomes straightforward, allowing you to quickly assess fluid levels and clarity. Quality sight glasses resist scratching, clouding, and corrosion, ensuring you maintain clear visibility over time. This clarity is vital for effective fluid monitoring, helping you detect contamination or leaks early. Regularly inspecting your sight glasses, especially those made from premium materials, prevents misinterpretation caused by foggy or damaged viewing windows. Ultimately, choosing reliable sight glasses enhances your maintenance routine, reduces downtime, and prevents overfills or other issues caused by inaccurate fluid level assessments.
When to Replace or Upgrade Your Gearbox Sight Glass
Knowing when to replace or upgrade your gearbox sight glass is essential for maintaining peak equipment performance. Regular maintenance scheduling helps you identify signs of wear, such as cracks, cloudiness, or leaks. If your sight glass becomes difficult to read or shows signs of damage, it’s time for an upgrade to prevent misinterpretation of oil levels. Conducting a thorough cost analysis can reveal whether repairing or replacing the sight glass offers better value, especially if frequent issues arise. Upgrading to a more durable or higher-quality sight glass can reduce downtime and maintenance costs over time. Staying vigilant about its condition ensures accurate monitoring and prevents overfill disasters, ultimately protecting your gearbox and minimizing costly repairs.
Integrating Sight Glasses Into Your Overall Gearbox Maintenance Routine
Incorporating sight glasses into your overall gearbox maintenance plan guarantees consistent monitoring and early detection of issues. Regularly check the oil level and clarity through the sight glass during routine inspections to prevent overfilling or contamination. Use proper lubrication best practices, ensuring the right oil type and level, and note any changes in color or viscosity. Integrate sight glass checks into your gearbox inspection techniques, making them a standard part of your maintenance schedule. Here’s a quick guide:
| Step | Action | Frequency |
|---|---|---|
| 1 | Visual oil level and clarity check | Every inspection |
| 2 | Record findings and compare trends | Weekly or monthly |
| 3 | Perform lubrication best practices review | Quarterly |
| 4 | Address abnormalities immediately | As needed |
This routine helps catch issues early, ensuring ideal gearbox performance.
Frequently Asked Questions
Can Sight Glasses Detect Fluid Contamination or Quality Issues?
Yes, sight glasses help you detect fluid contamination and quality issues quickly. By inspecting the fluid visually, you can spot dirt, debris, or discoloration that signals contamination. Changes in fluid clarity or color indicate declining fluid quality, alerting you to potential problems before they cause damage. Regularly checking sight glasses keeps you proactive, ensuring your gearbox operates smoothly and reducing costly repairs caused by contaminated or degraded fluid.
Are There Specific Materials Better Suited for Harsh Operating Environments?
Think of your sight glass as a sturdy lighthouse standing firm against stormy seas. For harsh environments, choose materials with exceptional durability and environmental resistance, like tempered glass or high-grade plastics such as polycarbonate. These materials withstand extreme temperatures, vibrations, and chemical exposure, ensuring your sight glass remains clear and reliable. By selecting the right durable materials, you protect your equipment and maintain accurate fluid monitoring even in the toughest operating conditions.
How Often Should Sight Glasses Be Inspected or Cleaned?
You should inspect your sight glasses regularly, ideally every month, to guarantee clear visibility and detect any damage early. Follow proper cleaning guidelines by using only approved cleaning agents and soft cloths to avoid scratches. Increase inspection frequency if your environment is harsh or if you notice dirt, oil, or debris buildup. Consistent maintenance helps prevent overfill disasters by keeping your sight glasses reliable and in good condition.
Do Sight Glasses Require Special Tools for Installation or Replacement?
You don’t need special tools for installation or replacement of sight glasses; standard hand tools usually suffice. Follow the manufacturer’s installation requirements carefully, making certain the sight glass is properly aligned and sealed to prevent leaks. During replacement procedures, drain the gearbox first, then remove the old glass, clean the surface, and install the new sight glass securely. Proper procedures ensure reliable operation and avoid costly overfill or leak issues.
Can Sight Glasses Be Used for Fluids Other Than Gearbox Lubricants?
You can definitely use sight glasses for fluids beyond gearbox lubricants, but you need to consider alternative applications and fluid compatibility first. Think of it like choosing the right lens for different environments; not all sight glasses are suitable for every fluid. Check the material specifications to ensure resistance to corrosive or viscous fluids. Doing so guarantees accurate readings and prevents damage, making your sight glass a versatile tool for various fluid monitoring needs.
Conclusion
Installing a gearbox sight glass is a simple upgrade that can save you thousands in repair costs. Did you know overfilling gearboxes can lead to catastrophic failures in up to 30% of cases? By checking fluid levels instantly and maintaining clear sight glasses, you prevent disasters before they happen. Make this small change today—your equipment will run smoother, last longer, and save you money in the long run. Don’t wait for a failure; see the difference now.
